Wave System

The Wave System manages how enemies spawn, wave progression, and obstacle placement. Configure spawn counts, timing, and obstacle behavior through the Unity Inspector.

What You Can Customize

This guide covers all wave system customization:

• Enemy spawn counts per wave
• Maximum enemies per wave cap
• Enemy spawn delay timing
• Obstacle spawn counts
• Obstacle visual behavior and colors
• Wave progression flow

All configuration happens through the WaveManager component.

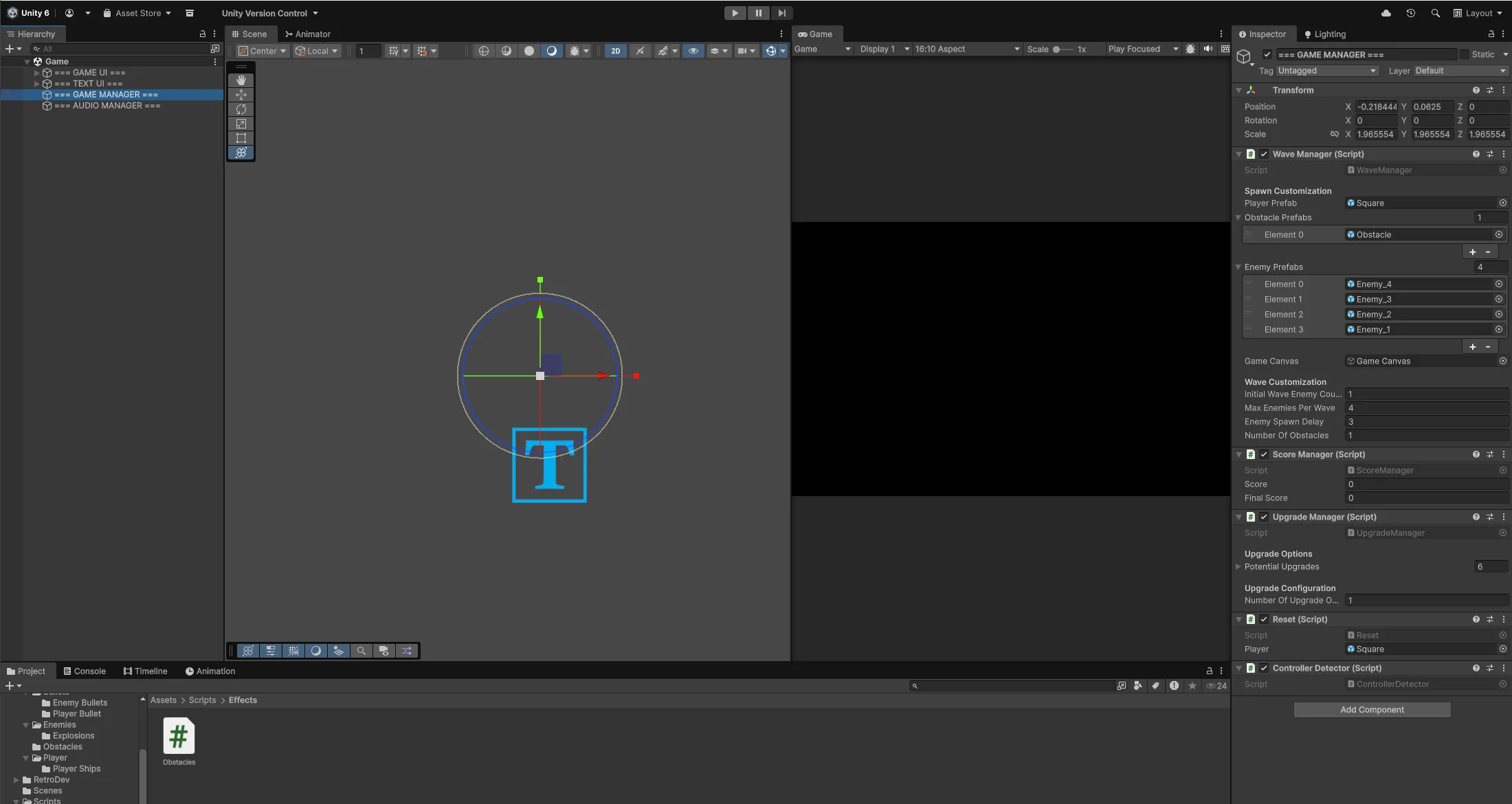

Wave Manager Configuration

The WaveManager controls all wave spawning and progression logic.

Location

Game Scene > === GAME MANAGER === > WaveManager (Script)

The WaveManager component is attached to the game manager object in the Game scene.

Spawn Customization

Control which prefabs are used for spawning.

Inspector Fields

Spawn Customization:

• Player Prefab: The player ship to spawn (set automatically from shape selection)
• Obstacle Prefabs: Array of obstacle prefabs available for spawning
• Enemy Prefabs: Array of enemy prefabs available for spawning (covered in Combat & Enemies)
• Game Canvas: Reference to the canvas where objects spawn

Player Prefab

The Player Prefab field is automatically set from the shape selection menu. When a player chooses a ship, that selection is stored and used by the WaveManager.

How it works:

• Player selects ship in shape selection screen
• Selection is stored in ShapeSelect.selectedShape
• WaveManager retrieves this in Awake() and assigns to playerPrefab
• Selected ship spawns at the start of each wave

You don’t need to manually set this field.

Obstacle Prefabs Array

This array determines which obstacle variants can spawn during waves.

Steps to add obstacles:

1. Navigate to WaveManager component
2. Expand the Obstacle Prefabs array
3. Increase the array size
4. Drag your obstacle prefabs into the slots

Steps to remove obstacles:

1. Expand the Obstacle Prefabs array
2. Remove the element or decrease array size

Obstacles are randomly selected from this array when spawning.

Wave Customization

Configure how waves progress and scale in difficulty.

Inspector Fields

Wave Customization:

• Initial Wave Enemy Count: Base number of enemies for wave calculation
• Max Enemies Per Wave: Maximum number of enemies that can spawn in a single wave
• Enemy Spawn Delay: Delay (in seconds) before enemies spawn after wave starts
• Number Of Obstacles: How many obstacles spawn per wave

Enemy Spawn Count Formula

The number of enemies per wave is calculated using:

Random.Range(1, Min(Initial Wave Enemy Count + Current Wave, Max Enemies Per Wave + 1))

Example with Initial Wave Enemy Count = 1 and Max Enemies Per Wave = 4:

• Wave 1: 1-2 enemies
• Wave 2: 1-3 enemies
• Wave 3: 1-4 enemies
• Wave 4+: 1-4 enemies (capped at maximum)

This creates progressive difficulty while maintaining randomness within bounds.

Initial Wave Enemy Count

This value affects the baseline for enemy spawning calculation.

Higher values = More enemies spawn earlier Lower values = Gradual increase over more waves

Max Enemies Per Wave

This caps the maximum number of enemies that can spawn in a single wave, regardless of wave number.

Higher values = Later waves can spawn more enemies Lower values = Wave difficulty plateaus earlier

Enemy Spawn Delay

Time delay between wave start and enemy spawning.

Purpose:

• Gives player time to see wave number
• Allows player to orient themselves after spawning
• Creates rhythm between waves

Measured in seconds.

Number Of Obstacles

How many obstacles spawn at the start of each wave.

Behavior:

• Spawns the specified count every wave
• Randomly selects from Obstacle Prefabs array
• Spawns at random positions within camera bounds
• Spawns with random rotation

Wave Flow

Understanding how waves progress:

Wave Start Sequence

1. Wave Text Display: Shows current wave number
2. Random Quote: Displays motivational message
3. Player Spawn: Spawns player at random position
4. Obstacle Spawn: Spawns configured number of obstacles
5. Delay: Waits for Enemy Spawn Delay duration
6. Enemy Spawn: Spawns calculated number of enemies

Wave Completion Sequence

1. Enemy Destruction: Player destroys all enemies
2. Enemy Count Check: System detects 0 enemies remaining
3. Cleanup: Destroys player and obstacles
4. Delay: Waits 1 second
5. Upgrade Overlay: Shows upgrade menu with three random upgrades
6. Player Choice: Player selects upgrade
7. Next Wave: Increments wave counter and restarts sequence

This cycle continues until the player’s shield is depleted.

Obstacle System

Obstacles provide cover for players and have special visual behavior.

Obstacle Prefabs

Obstacles are UI-based prefabs with image components.

Location: Assets > Prefabs > Obstacles

Each obstacle prefab includes:

• Image: UI Image component for visuals
• Obstacles: Script controlling alpha transitions
• Collider2D: Trigger collider for player detection

Obstacle Configuration

Select an obstacle prefab and view the Obstacles component.

Inspector Fields

Obstacle Properties:

• Obstacle Color: The base color of the obstacle
• Min Alpha: Minimum transparency when player is not nearby
• Max Alpha: Maximum transparency when player is inside obstacle
• Transition Speed: How quickly alpha transitions between min/max

Obstacle Behavior

Visual Transitions:

• Obstacles start at Min Alpha (semi-transparent)
• When player enters obstacle collider, alpha transitions to Max Alpha
• When player exits obstacle collider, alpha transitions back to Min Alpha
• Transition is smooth based on Transition Speed

Audio Effect:

• Audio muffles when player enters obstacle
• Audio unmuffles when player exits obstacle
• Creates immersion effect (player is “inside” the obstacle)

Gameplay Purpose:

• Obstacles block enemy bullets
• Players can hide behind/inside obstacles for cover
• Enemies can also be blocked by obstacles
• Strategic positioning around obstacles is key to survival

Creating Custom Obstacles

Steps:

1. Duplicate existing obstacle prefab:

   • Navigate to Assets > Prefabs > Obstacles
   • Right-click obstacle prefab → Duplicate
   • Rename it

2. Customize appearance:

   • Select the new prefab
   • Change the Image sprite
   • Adjust Obstacle Color
   • Modify collider size to match sprite

3. Configure behavior:

   • Set Min Alpha (how transparent when player is away)
   • Set Max Alpha (how opaque when player is inside)
   • Adjust Transition Speed (how quickly it fades)

4. Add to spawn pool:

   • Open Game Scene
   • Navigate to === GAME MANAGER === > WaveManager
   • Add new prefab to Obstacle Prefabs array

The obstacle will now spawn randomly during waves.

Spawn Positioning

All spawning (player, enemies, obstacles) uses random positions within camera boundaries.

How it works:

• BoundaryManager defines min/max bounds based on camera view
• RandomUtil.RandomVector2D() generates random position within bounds
• Objects spawn at these random positions
• Ensures spawns are always visible on screen

You cannot manually set spawn positions - they are always randomized.

Wave Progression Tracking

The current wave is tracked statically.

Wave Counter:

• Starts at wave 1
• Increments after each wave completion
• Resets when starting a new game
• Used for enemy scaling calculations (covered in Combat & Enemies)

The current wave number is displayed to the player at the start of each wave.

Game Canvas Reference

The Game Canvas field references where all game objects spawn.

Inspector Field:

• Game Canvas: Canvas GameObject reference

All spawned objects (player, enemies, obstacles) are instantiated as children of this canvas. This keeps the hierarchy organized and ensures proper rendering order.

Resetting Between Games

When starting a new game from the game over screen:

Reset Actions:

• Score set to 0
• Current wave set to 1
• Performance metrics reset (shots fired, damage dealt, ships destroyed)
• Game scene reloads

The NewGame() method handles this cleanup.

Understanding Wave Difficulty

Wave difficulty increases through:

1. Enemy Count: More enemies spawn as waves progress (up to max)
2. Enemy Scaling: Enemies get 10% more health and damage per wave (automatic)
3. Randomness: Random enemy counts within range create unpredictability

Difficulty progression is primarily controlled by:

• Initial Wave Enemy Count (how quickly enemy count ramps)
• Max Enemies Per Wave (difficulty ceiling)
• Enemy base stats (covered in Combat & Enemies)
